Fluid Color

105F

RF/ZF FLATBED SERIES

Models in 4 sizes with Ricoh Gen6 or Kyocera Heads for up to 4" thick media.

Learn More

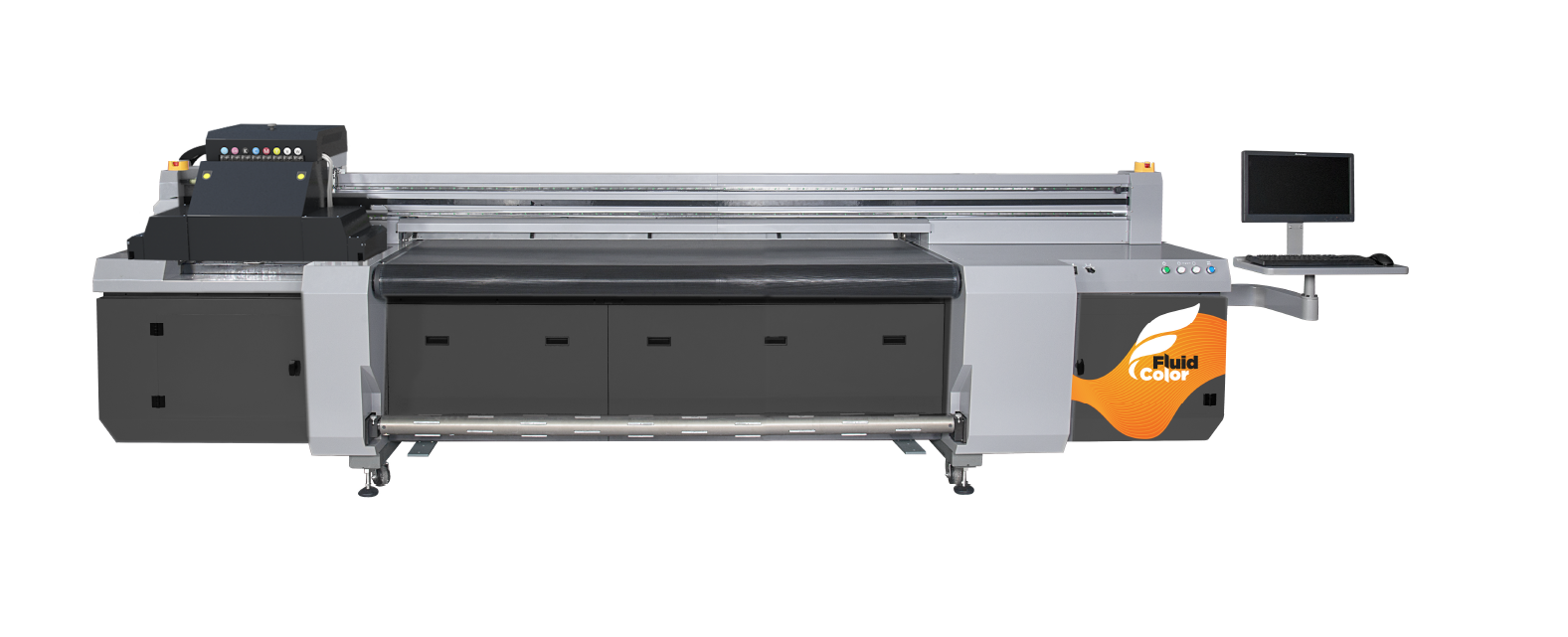

126R

RH/ZH HYBRID SERIES

63", 98", 126" and 204" maximum widths in Ricoh Gen6 or Kyocera Heads for rigid, flexible and roll.

Learn More

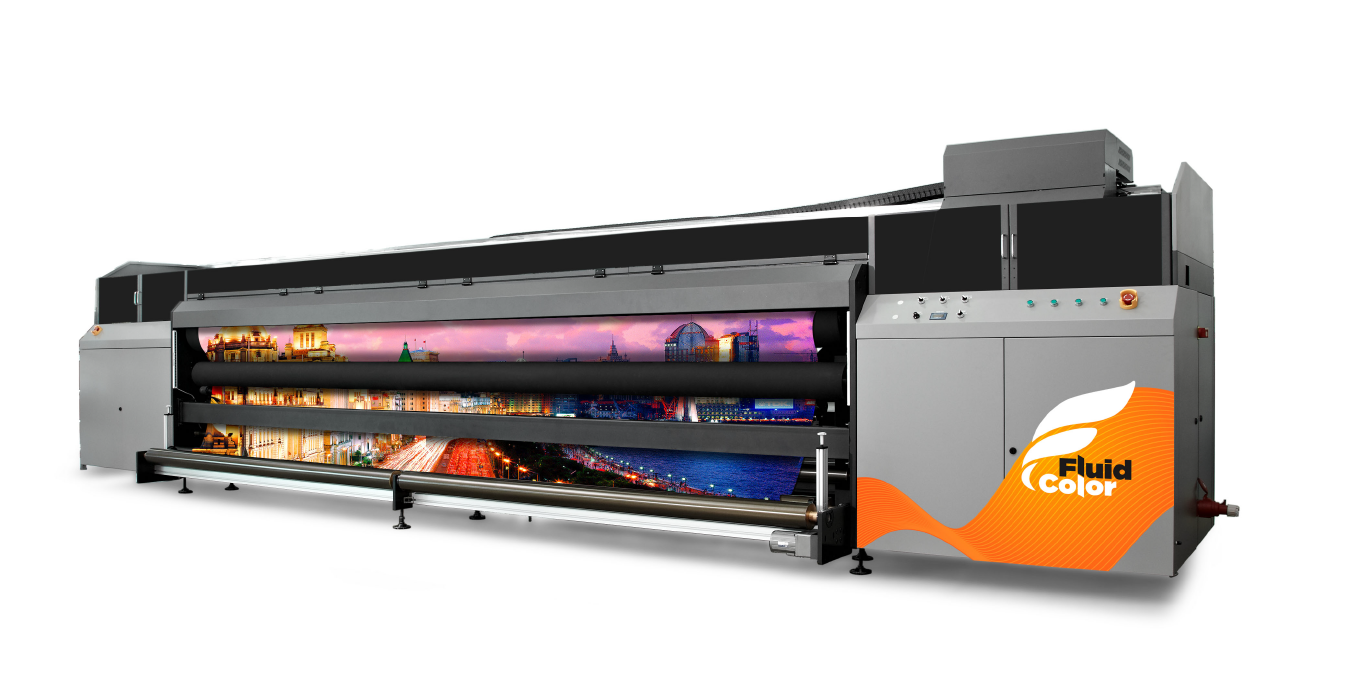

Z196R

ZR ROLL-TO-ROLL SERIES

Big 72", 126" and 196" width machines deliver up to 3267 ft2/hr on up to 2 mm media thicknesses.

Learn More

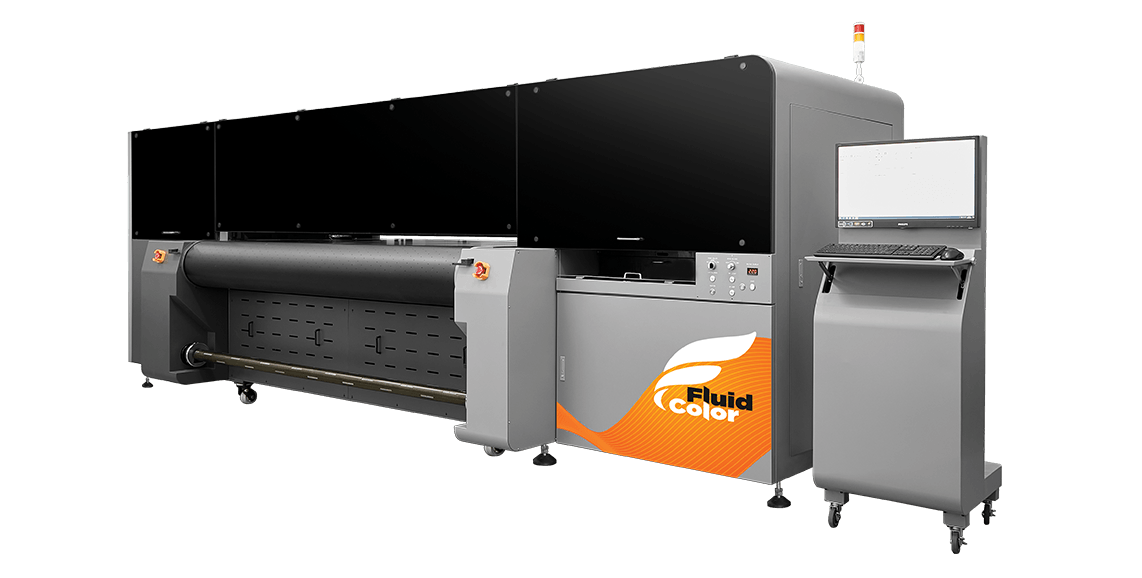

Z98H Turbo

High Speed Production. 100+ BPH

The fully automated Z98H Turbo takes your production to 100+ BPH production!

Learn More

Need additional information or pricing?

Contact Equipment Sales

Fluid Color Banner

RF / ZF FLATBED SERIES

Applications:
Ceramic Tile, Wall Graphics, Metal, Acrylic, Phone Cases, Glass & MDF

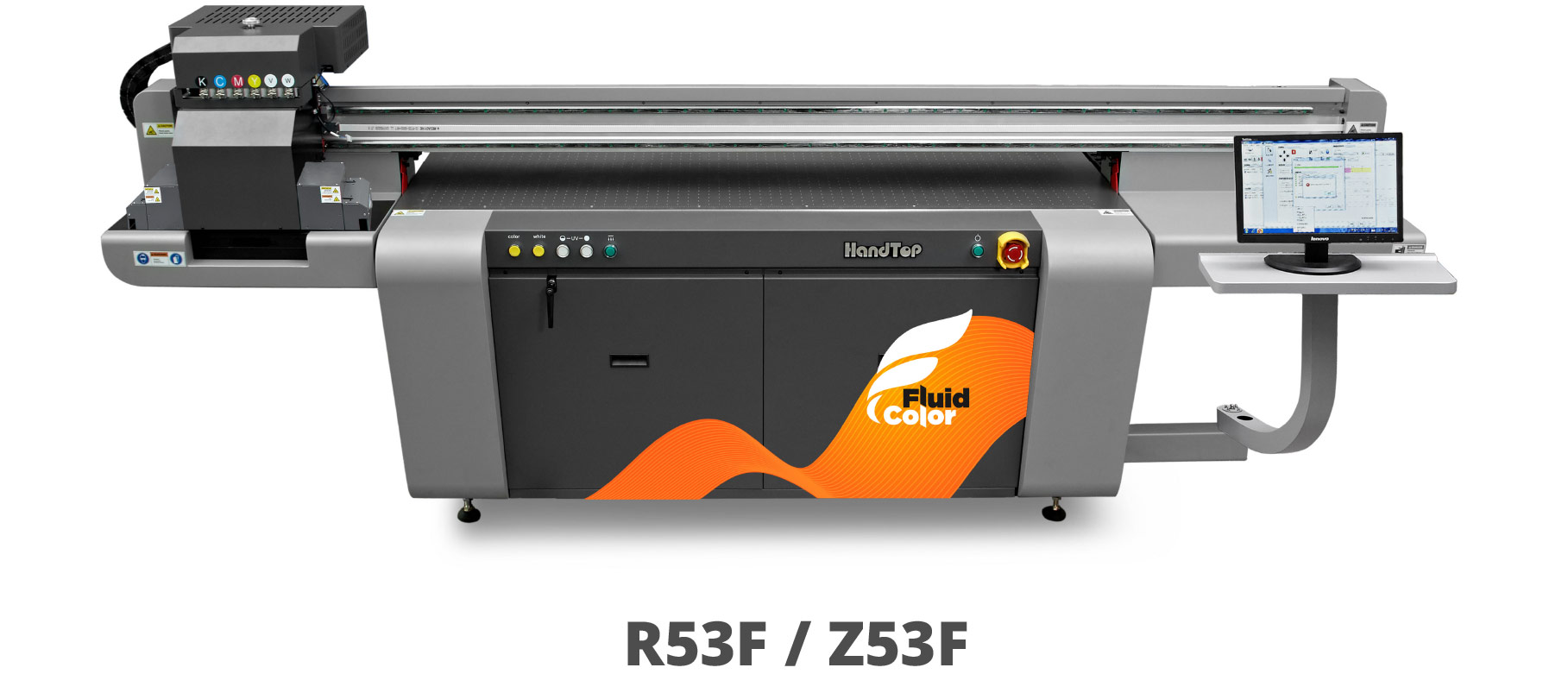

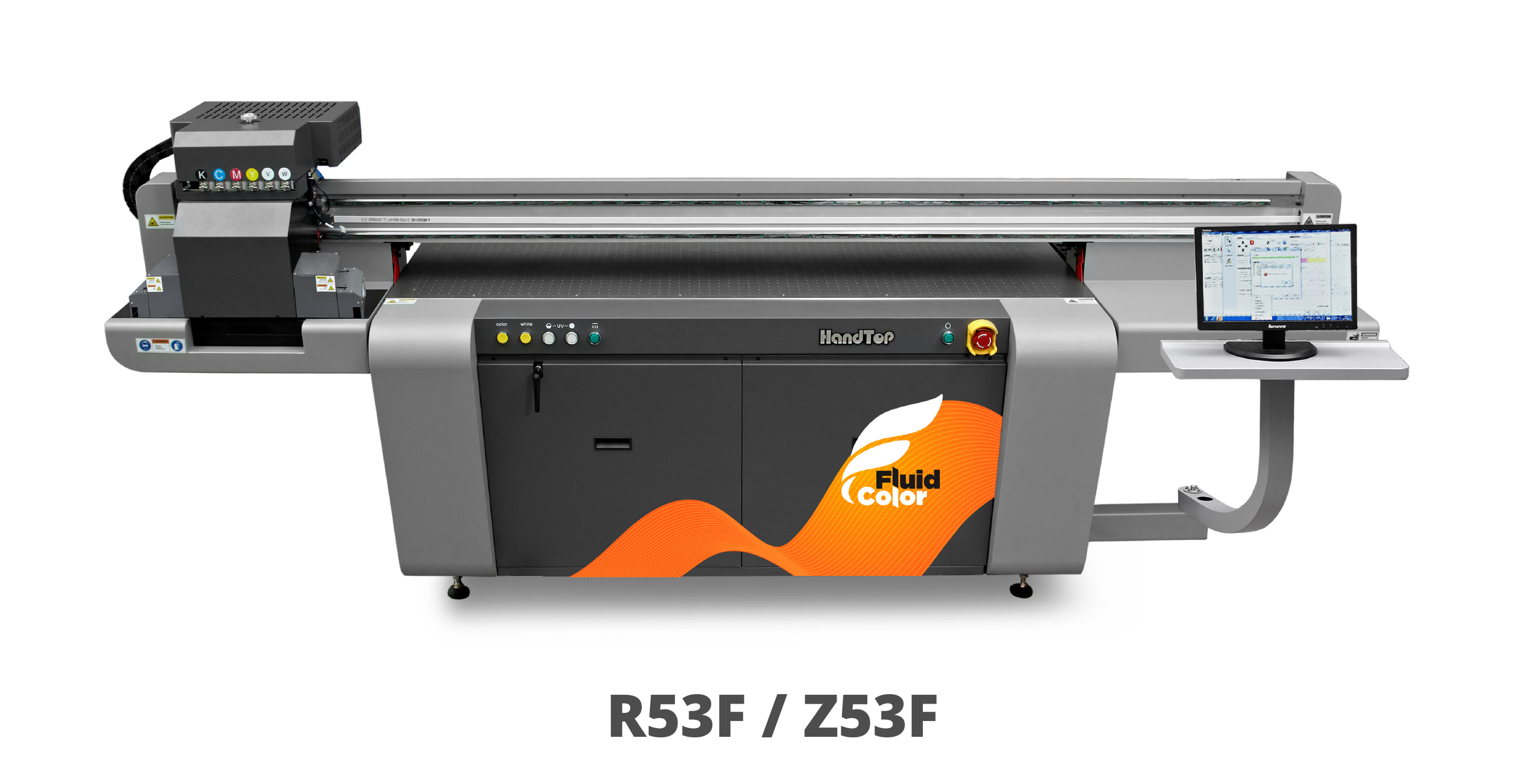

53F

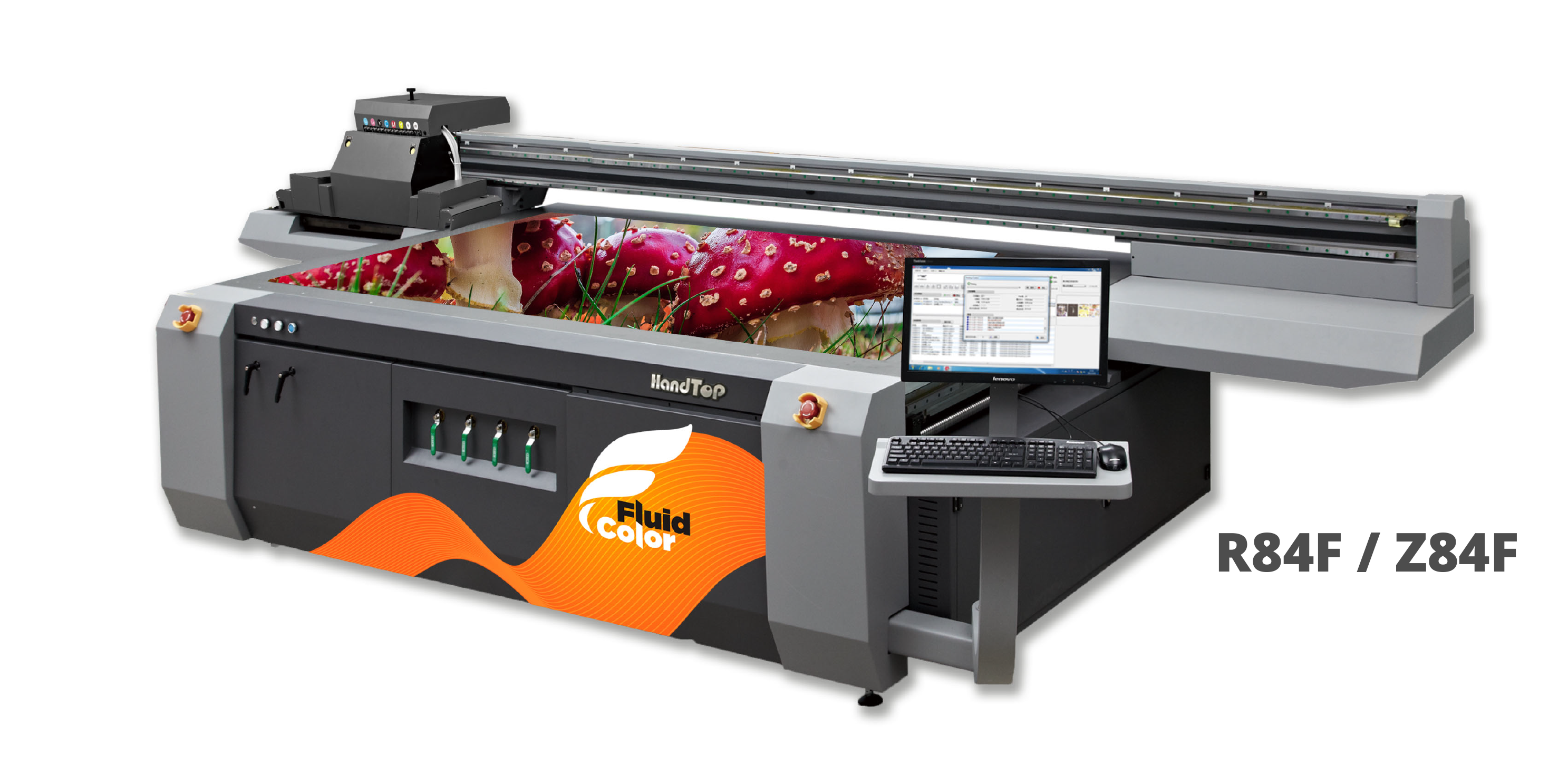

84F

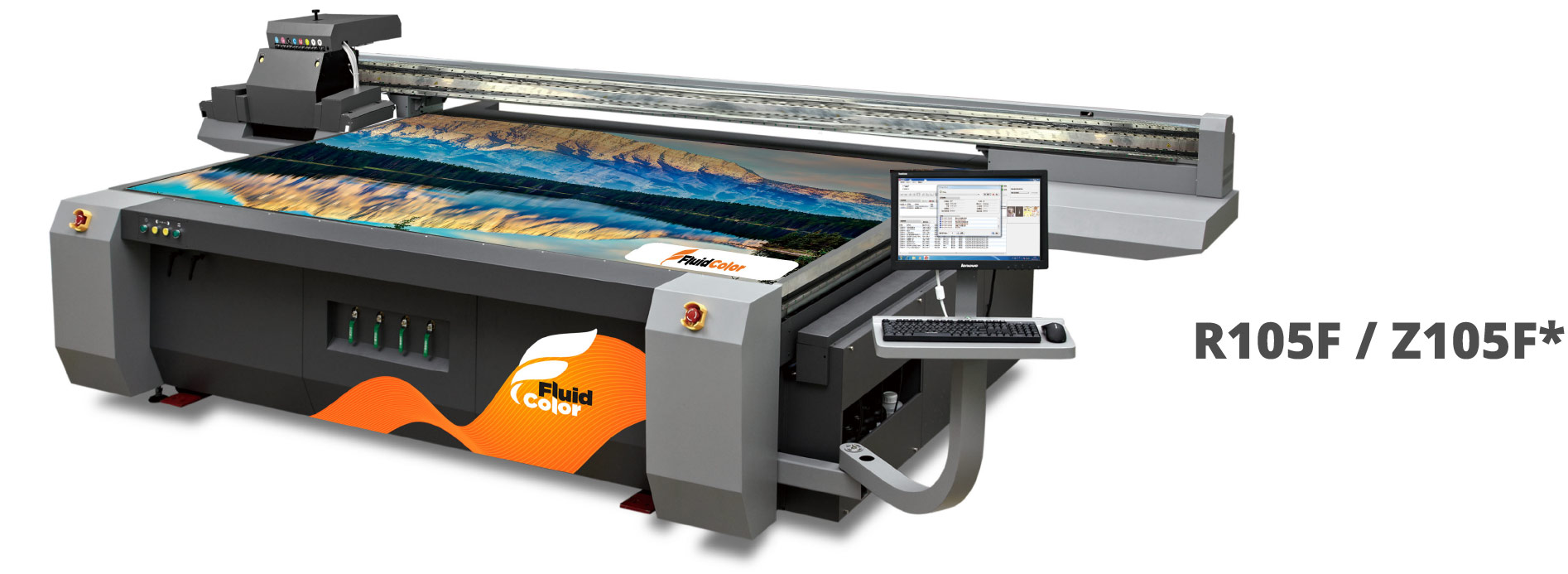

105F

Ricoh Gen5/Gen6 Print Heads

(Dual channel heads)

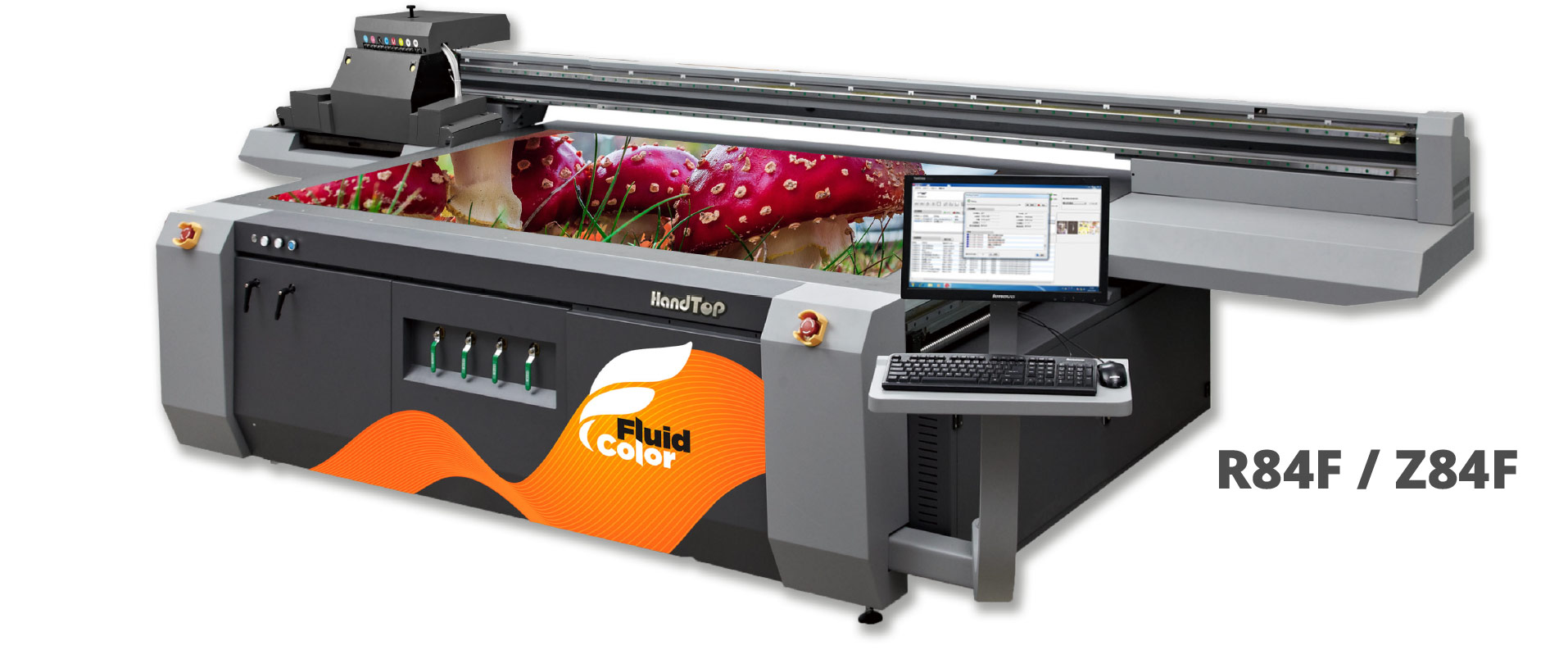

R53F / R84F / R105F

Featuring variable dots, true gray scale imaging 7, 14 and 21pl (Gen5) | 5, 10 and 15pl (Gen6)

  • Up to 733 ft2/hr
  • Up to 23 boards/hr
  • Up to 4" thick media
  • Sizes: 5' x 3.25', 8' x 4' & 10' x 5'
  • 4 vacuum zones
  • Pin registration system
  • LED curing standard

Kyocera Print Heads

(Dual channel heads)

Z53F / Z84F / Z105F

Featuring variable dots, true gray scale imaging 4, 6 and 10pl at true native dpi

  • FASTEST FLATBED IN ITS SEGMENT
  • Up to 1400 ft2/hr
  • Up to 43+ boards/hr
  • Up to 4" thick media
  • Sizes: 5' x 3.25', 8' x 4' & 10' x 5'
  • 4 vacuum zones
  • Pin registration system
  • LED curing standard
  • Linear motor, magnetic rail system option for Z105F*
Top Button

RH / ZH HYBRID SERIES

Applications:
Billboard or Banner, Backlit Fabric/Light Box, PVC Soft Film, Backlit Film, Non-woven Fabrics
63H
98H
126H

Ricoh Gen5/Gen6 Print Heads

(Dual channel heads)

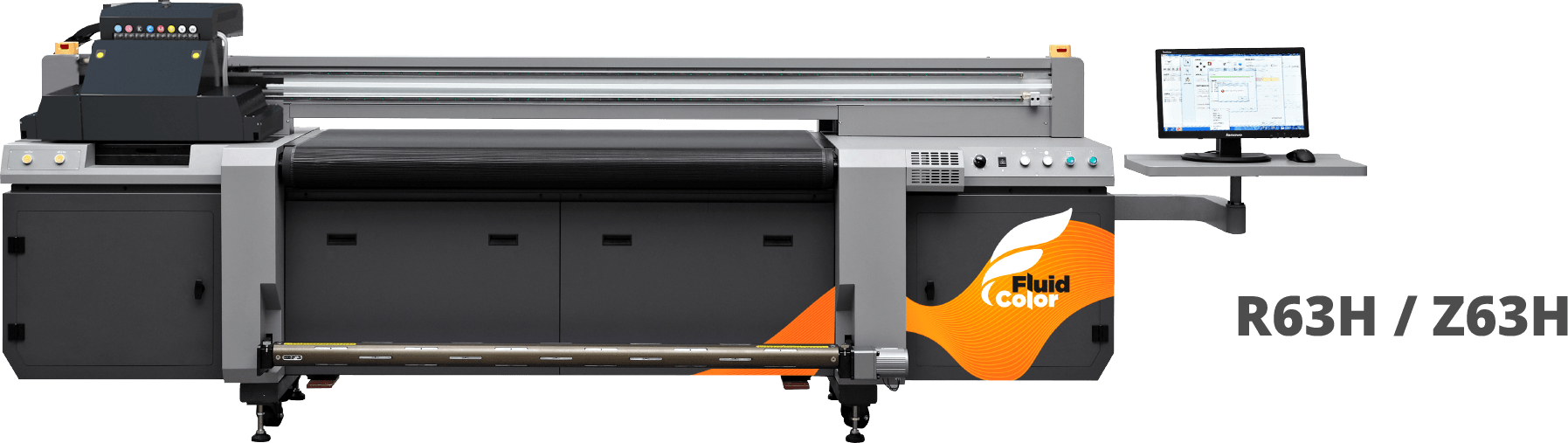

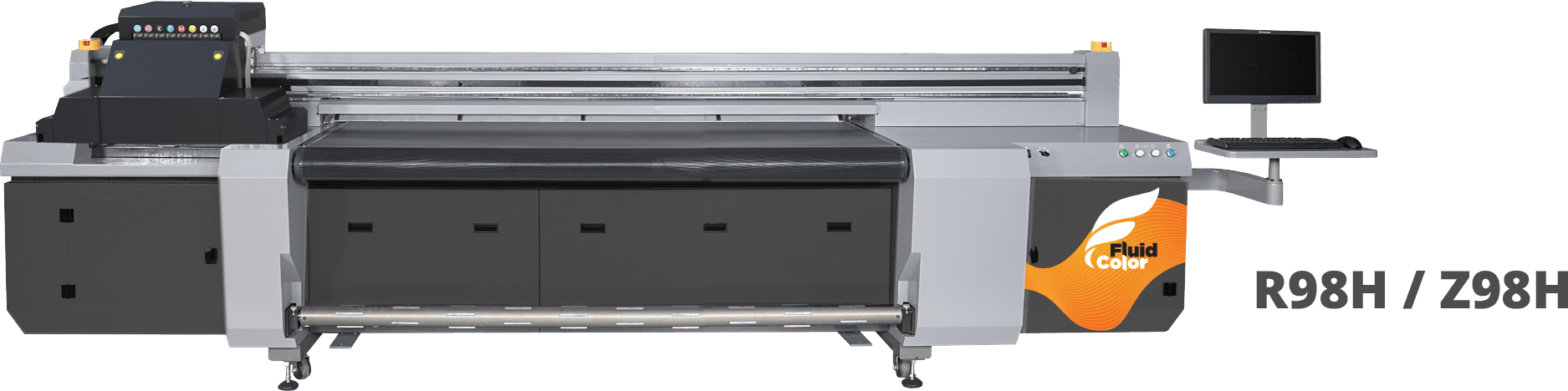

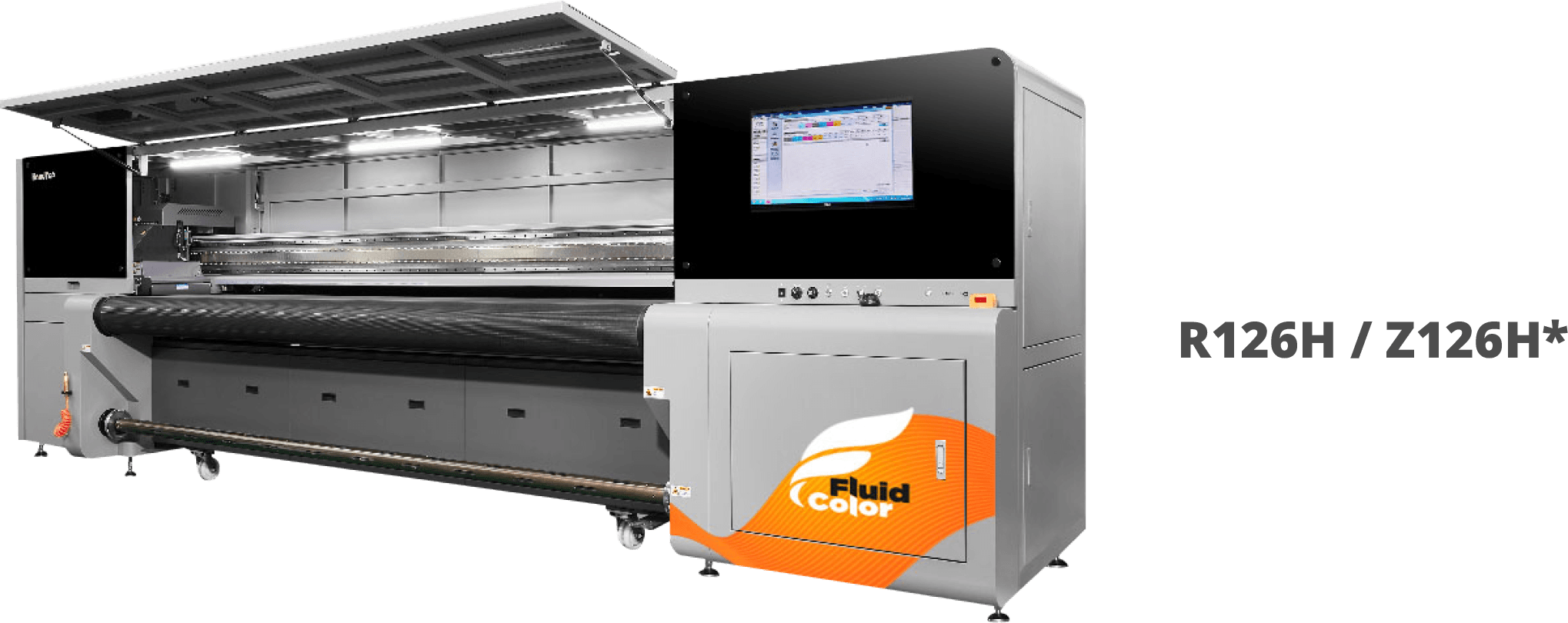

R63H / R98H / R126H

Featuring variable dots, true gray scale imaging 7, 14 and 21pl (Gen5) | 5, 10 and 15pl (Gen6)

  • Up to 799 ft2/hr
  • Up to 2" thick media
  • Sizes: 63", 98" & 126"
  • 4 vacuum zones
  • Retractable registration bar
  • Linear motor, magnetic rail system option not available
  • For Ricoh head systems
  • LED curing standard

Kyocera Print Heads

(Dual channel heads)

Z63H / Z98H / Z126H

Featuring variable dots, true gray scale imaging 4, 6 and 10pl at true native dpi

  • FASTEST HYBRID IN ITS SEGMENT
  • Up to 1530 ft2/hr
  • Up to 2" thick media
  • Sizes: 63", 98" & 126"
  • 4 vacuum zones
  • Retractable registration bar
  • LED curing standard
  • Linear motor, magnetic rail system option for Z126H*
Top Button

ZR ROLL-TO-ROLL SERIES

Applications:
Decorative Painting, Metal, Acrylic, Phone Cases, Glass & MDF
z126R

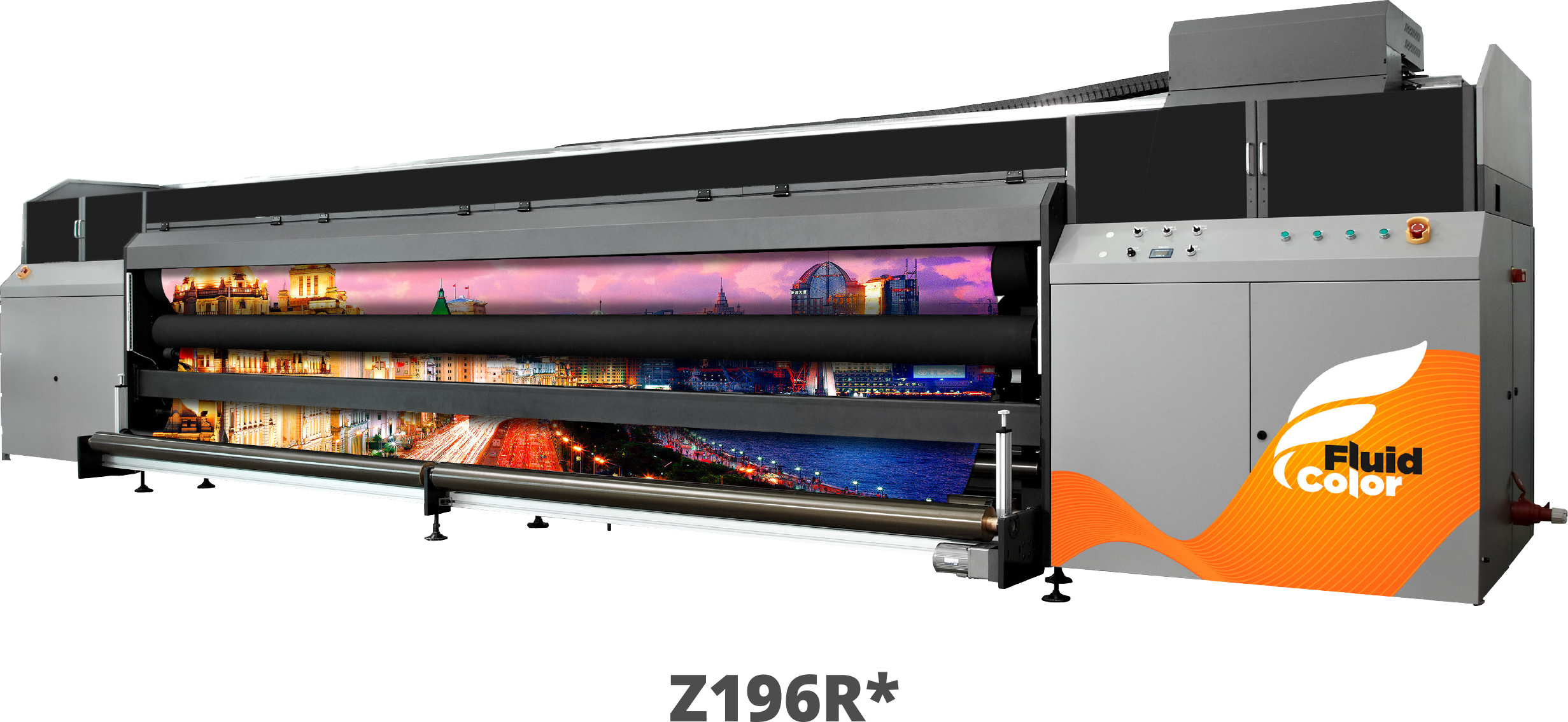

z196R

Kyocera Print Heads

(Dual channel heads)

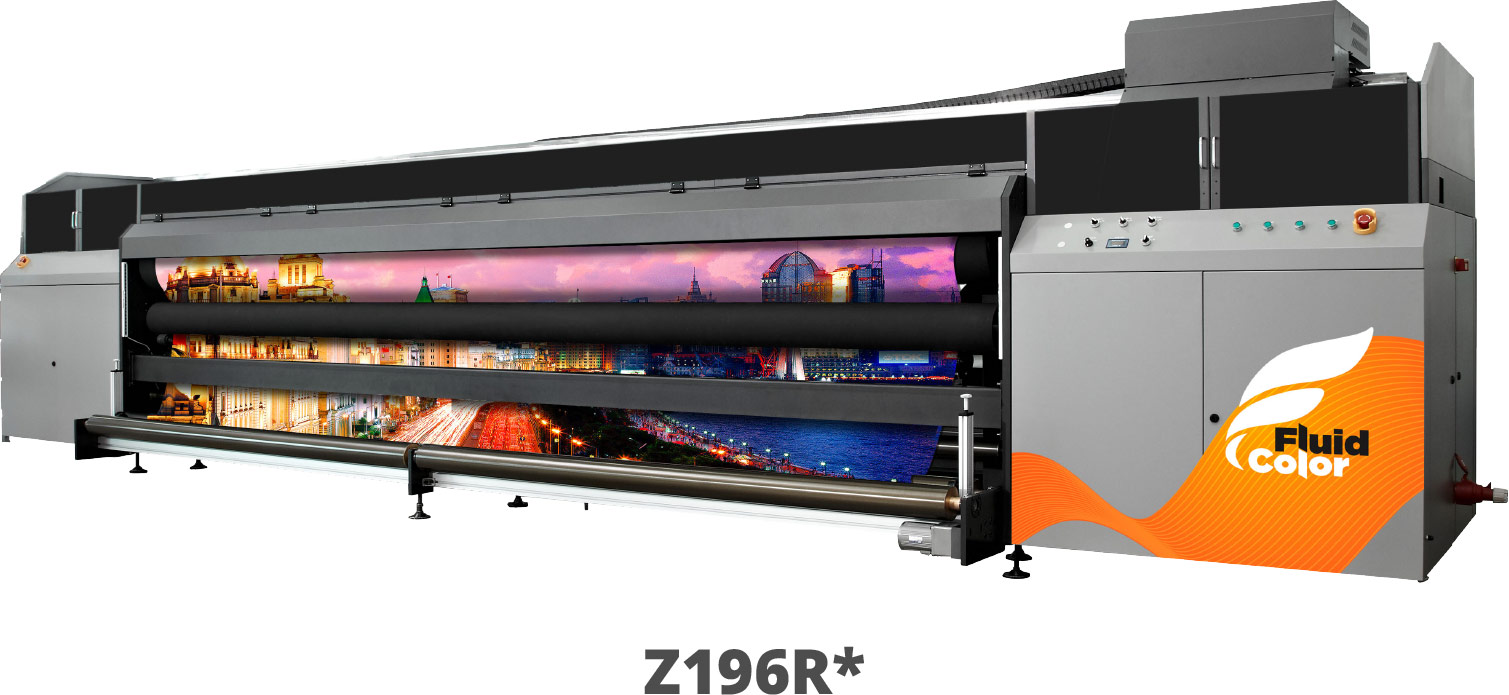

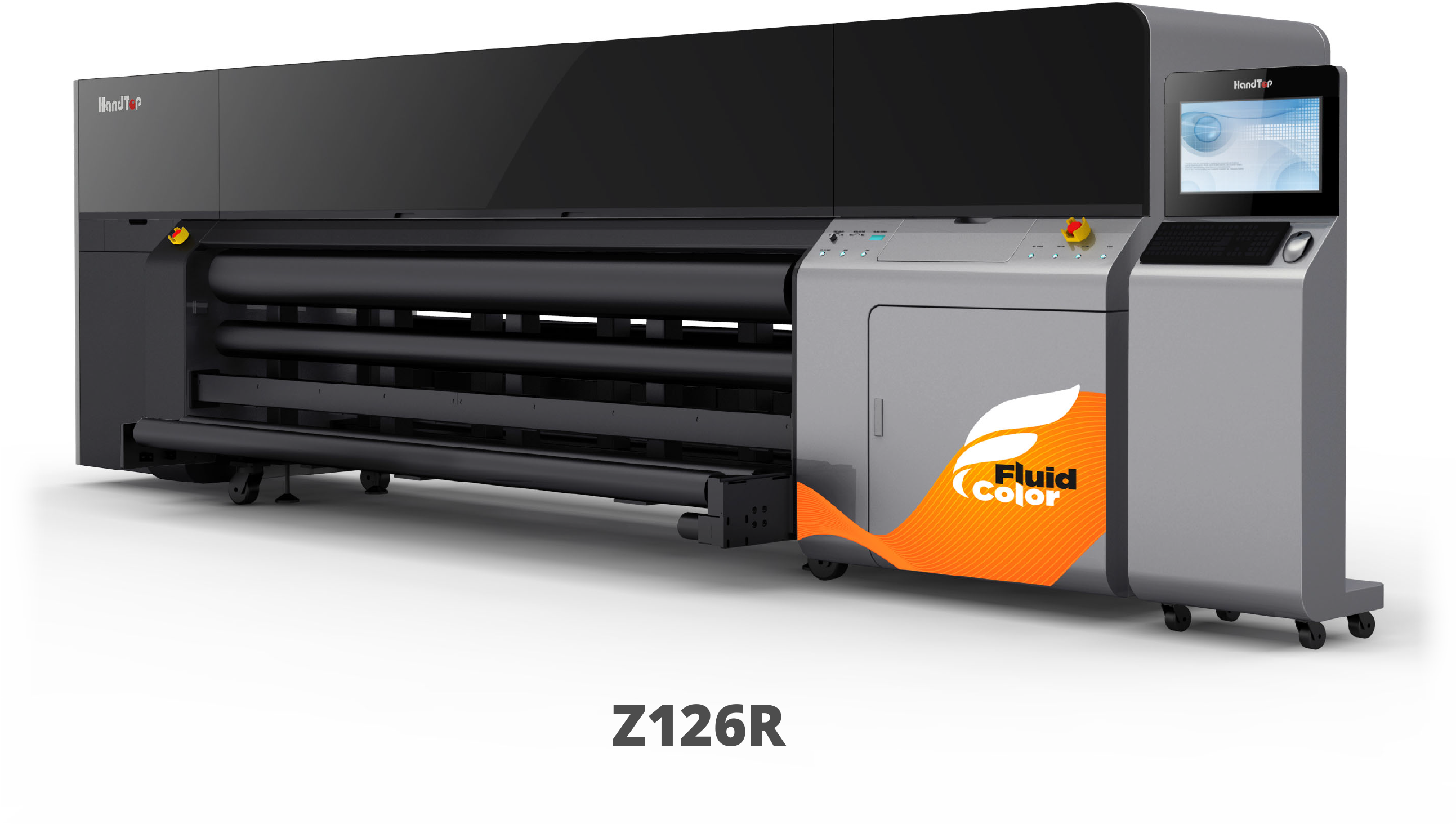

Z126R / Z196R

Featuring variable dots, true gray scale imaging 4, 6 and 10pl

  • MOST ECONOMICAL ROLL-TO-ROLL IN ITS SEGMENT
  • Z126R up to 937 ft2/hr
  • Z126R Turbo up to 1680 ft2/hr
  • Z196R up to 2067 ft2/hr
  • Up to 2mm thick media
  • Sizes: 126" (3.2 meters) & 196" (5 meters)
  • Mesh kits for printing on liner-less mesh media
  • Linear motor, magnetic rail system option for Z196R*

Go To Top

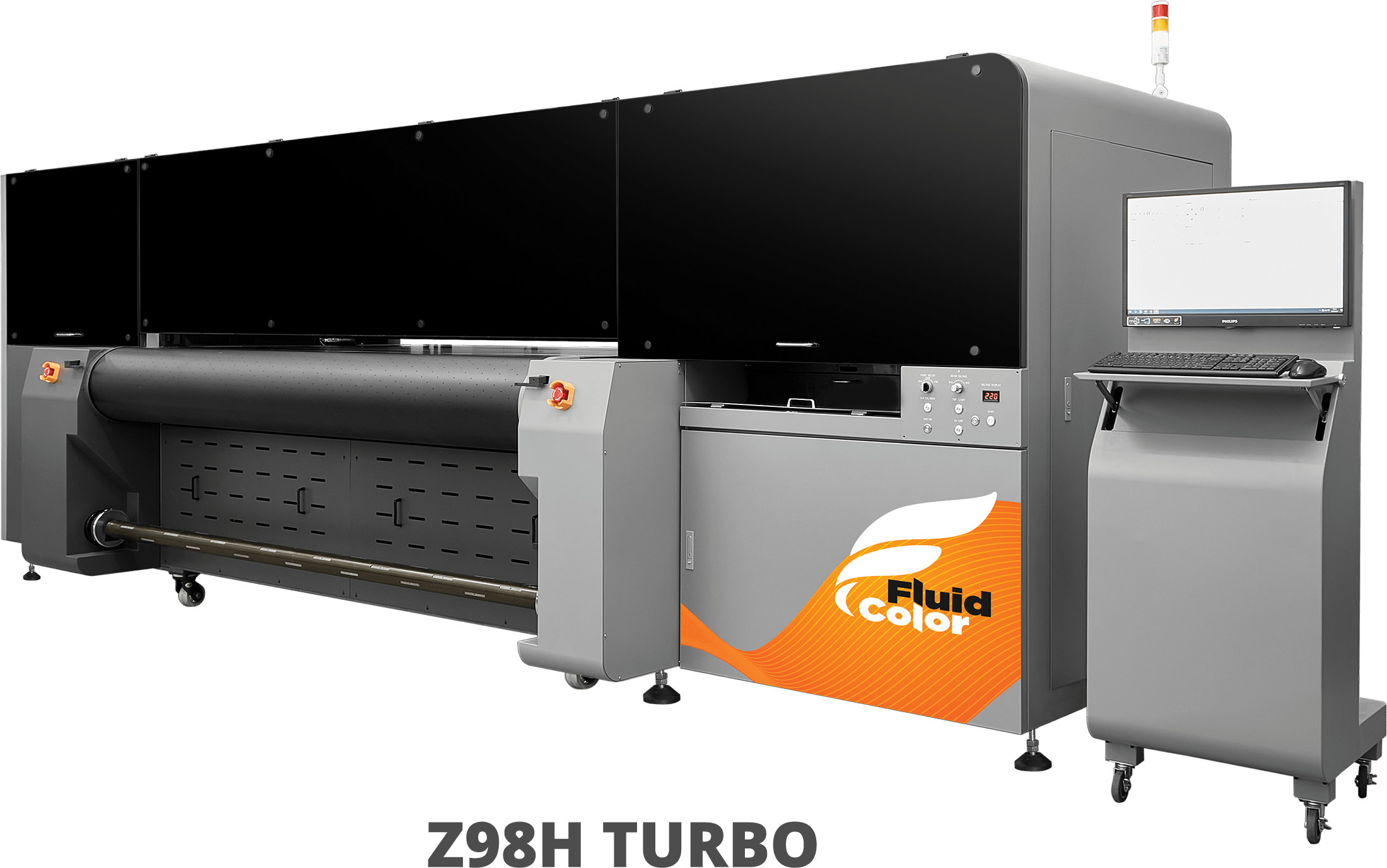

High Speed Production. 100+ BPH

z98h

  • Print widths up to 98.42 inches
  • Print speeds over 4000 ft²/hr or 100 bph
  • Maximum substrate thickness of 2 inches
  • Rigid or roll printing options
  • CMYK ink sets with optional white
  • Double and triple row symmetrical printhead configurations
  • Water-cooled, LED curing technology
  • Simple registration system for media positioning
  • Automatically controlled vacuum zones
  • Automatic media thickness measuring
  • Automatic print cycle printing to maximize throughput
  • Crash bars to protect the printheads
  • Static suppression system
  • White ink pigment dispersion system
  • Linear motor, magnetic rail system

Board Loading Options:

  • Extension tables for manual loading
  • Semiautomatic board loading
  • Automatic board loader
  • Automatic board unloader
